Zhongtuo Roll Forming Machinery Co., ltd

Steel Scaffolding Board Roll Forming Machine
Steel Scaffolding Board Roll Forming Machine
Steel Scaffolding Board Roll Forming Machine
Steel Scaffolding Board Roll Forming Machine
Steel Scaffolding Board Roll Forming Machine

Steel Scaffolding Board Roll Forming Machine

Unit Price: USD 29000 - 45000 / Set/Sets
Payment Type: T/T,L/C,D/A,D/P
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-005-38

Additional Info

    Packaging: as customer requirem

    Productivity: 2-8m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO9001

Product Description

Steel Scaffolding Board Roll Forming Machin

Steel Scaffolding Board Roll Forming Machine consists of automatic decoiler, the guide and leveling, continuous punching device, forming part, length cutting portion, receiving station, electrical control cabinets and other components.


Advantage of our Scaffolding Board Machine:

1. Scaffolding Board Machine is controlled by PLC control system ,during normal work,it will more security.

2. The basic of Scaffolding Board Making Machine is middle plate,it will be welded and tempering to avoid the distortion.

3.The frame of machine is iron structure,it will tempering.After this process, it will more strong and long life.

4.Transmission structure for the gear box. Each rack has a gear box molding can ensure that equipment over time, high-intensity running, and long service life.

Steel Scaffolding Board Roll Forming Machine

Basic information of Steel Scaffolding Board Roll Forming Machine:

1,Working speed :2-8 m/min

2,Material thickness :1.0-1.2mm

3,Control system:PLC

4,Decoiler :5T

5,Punching :one set

6,Main roll forming rollers:16row rollers

7,Roll material:GCR15 Steel after quenching process HRC58-62℃,he chrome plating surface treatment

8,Material of the shaft and the shaft diameter:45# steel processing, shaft diameter is 70mm

9,Main machine power :18.5kw

10,Hydraulic station power:5.5kw

11,Hydraulic pressure:24Mpa

12,Scissors punching material:Cr12Mov,Quenching HRC 58-62℃

13,Length tolerance:3m±1.0mm

14,Voltage :380V, 50HZ,3 phrase

15,driving mode :chain driving mode

16,Machine size :16.5*2.2*1.6m


17,Delivery date :30 working days

18,Accessories:

1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. Rubber mat 1 pcs; 3.Bolt spanner 1 pcs

19,Payment terms: Payment: 30% T/T in advance and balance 70% after, Inspection confirmation before shipment.

Delivery: within 45 working days after receipt of deposit


Detail introduction of each part:

A profile drawing as reference:

Steel Scaffolding Board Roll Forming Machine

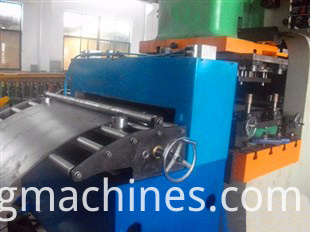

Feeding and punching:

Steel Scaffolding Board Roll Forming Machine

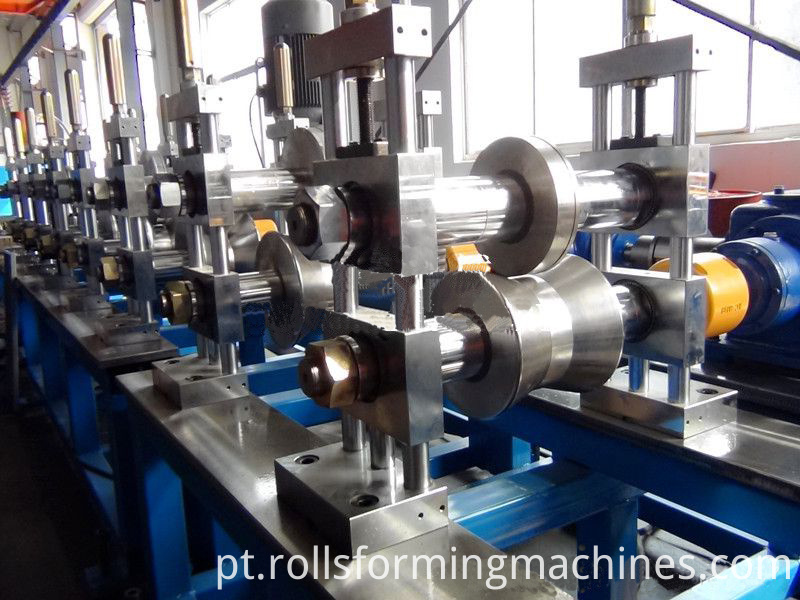

Roll forming for Steel Scaffolding Board Roll Forming Machine:

Steel Scaffolding Board Roll Forming Machine

Steel Scaffolding Board Roll Forming Machine

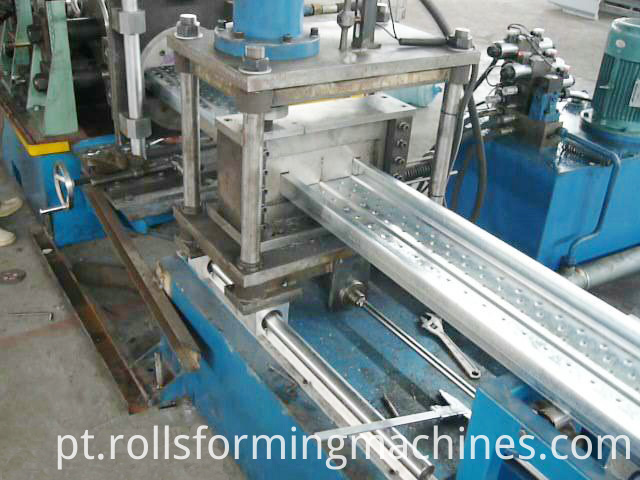

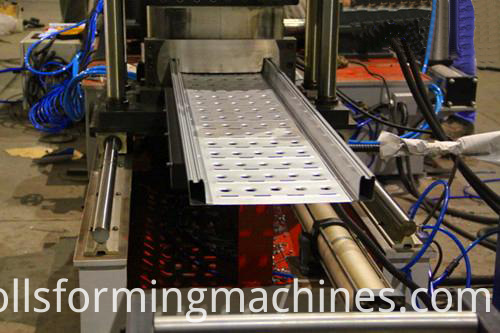

Cutting part:

Steel Scaffolding Board Roll Forming Machine

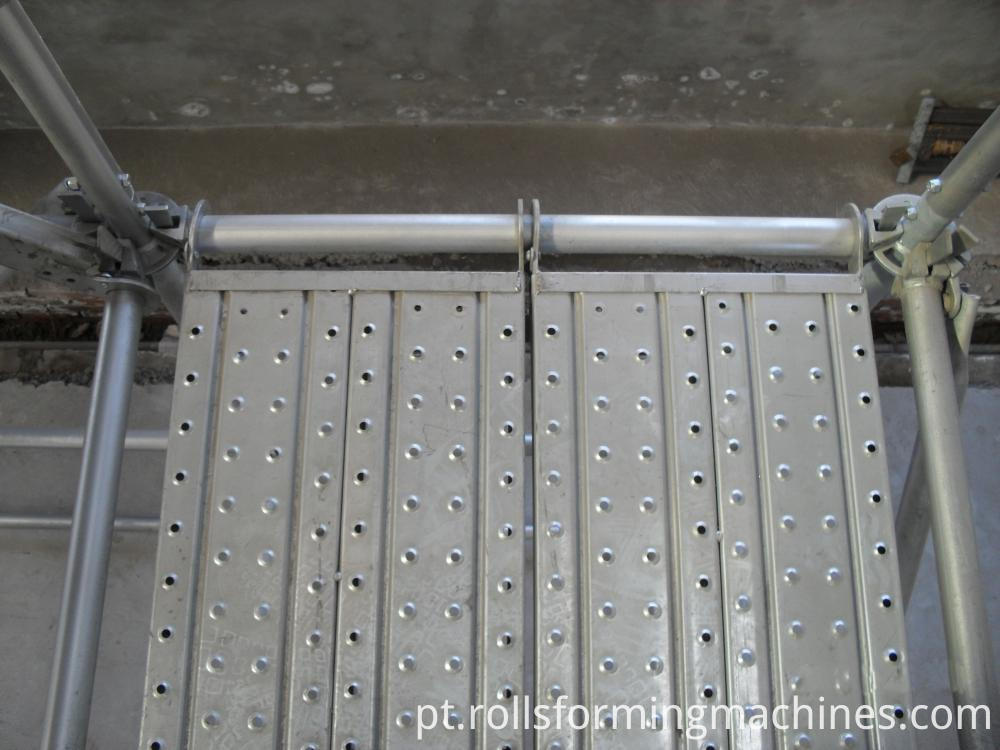

The final product of Scaffolding Board for you reference:

Steel Scaffolding Board Roll Forming Machine


Steel Scaffolding Board Roll Forming Machine







Looking for ideal Scaffolding Board Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Scaffolding Board Machine are quality guaranteed. We are China Origin Factory of Scaffolding Board Making Machine. If you have any question, please feel free to contact us.
