Zhongtuo Roll Forming Machinery Co., ltd

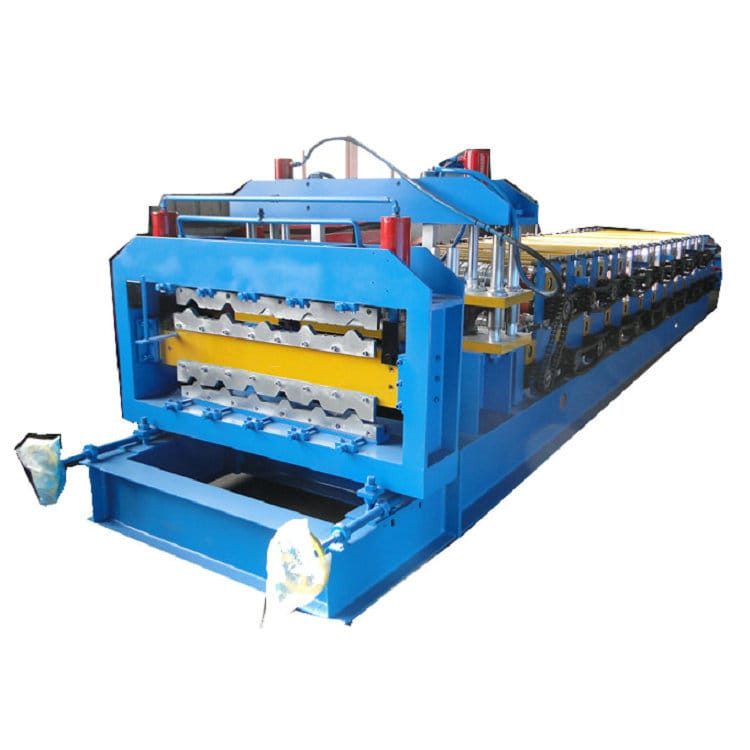

double layer roofing panel roll forming machine
double layer roofing panel roll forming machine
double layer roofing panel roll forming machine
double layer roofing panel roll forming machine

double layer roofing panel roll forming machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Tile Type: Colored Steel

    Condition: New

    Customized: Customized

    Usage: Roof, Roof Wall

    Transmission Method: Hydraulic Pressure

    Material Thickness: 0.3-0.8mm

    Uncoiler Carrying Capacity:: 5T

    Shaft Diameter:: 80 Mm

    Design Type: Pillar Structure

    Shaft Material:: 40Cr Steel

    Work Speed: 4-12m/min

    Transport: By Chain

    Name: Double Layer Roof Tile Machine,metal Roofing Roll

    Warranty: 12 Months

Additional Info

    Packaging: nude packaging

    Productivity: 30 sets/ month

    Brand: zhongtuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/ month

    Certificate: ISO CE

    Port: XINGANG TIANJIN

Product Description

double layer Roofing Panel Roll Forming Machine

Double layer roofing tile roll forming machine can produce two types steel roof/ wall sheet .The final products have two types,corrugated sheet and trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, air purification room and temporary housing.

About the double layer roof tile machine,metal roofing roll forming machine, metal roof machine for sale ,we have many types:

1.double layer corrugated sheet /corrugated sheet roof tile machine

2.double layer trapezoidal sheet /trapezoidal sheet metal roofing roll forming machine

3.double layer glazed tile /trapezoidal sheet metal roof machine

4.double layer glazed tile /corrugated sheet roof tile machine


double layer roofing panel roll forming machine

Processing flow diagram of double layer roofing tile roll forming machine

double layer roofing panel roll forming machine

Advantage of double layer roofing tile roll forming machine

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)

2.the surface of the final product is very smooth and beautiful without any scratch on the surface.

3.customized:design the machine according to your specification and profile drawing.(for your reference)

Decoiler

It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system .The loading capacity is 3T .

Uncoiling width: 500mm

Inner diameter: 450 - 550mm

Main roll forming machine:

Feeding and flatting will make sure the steel is neat clean and straight. We can design voltage as customer`s request)

Roller fixer : Guide column

Frame : middle plate welded Memorial arch frame type

Speed: 4-12m/min

Material of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ40 mm

Shearing Machine:

Material of blades: Gcr12 quenched

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

Electic Control System:

Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

double layer roofing panel roll forming machine )

double layer roofing panel roll forming machine )

packing :

1. One 40ft container for loading one set machine with Manual Decoiler.

2. The whole wiped anti rust oil ,PLC controller covered by foam film.

3. Spare parts and some small parts packed in plastic tooling box.

4. All components of double layer roof tile machine,metal roofing roll forming machine, metal roof machine for sale fixed by steel wire.

our services

1. Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.

2. After Service of double layer roof tile machine,metal roofing roll forming machine, metal roof machine for sale

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.


Looking for ideal Double Layer Roofing Panel Roll Forming Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Double Layer Roof Panel Machine are quality guaranteed. We are China Origin Factory of Double Layer Panel Roll Forming Machine. If you have any question, please feel free to contact us.

Product Categories : Double Layer Roll Forming Machine
